May 29, 2007

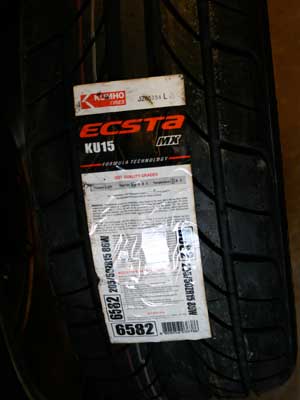

New tires for autocrossing. The tires are 205/50 15 Kumho Ecsta MXs

March 9, 2007

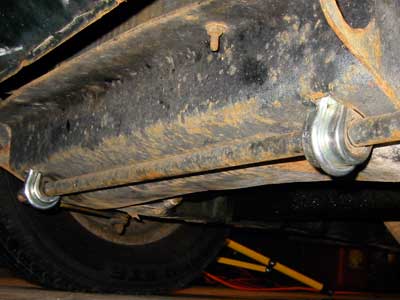

New sway bar mounts. One of them was completely missing.

March 8, 2007

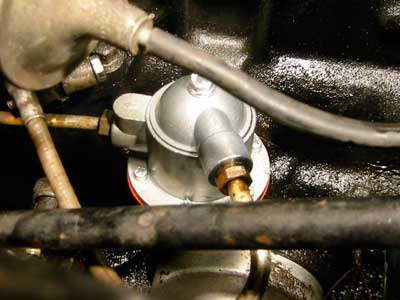

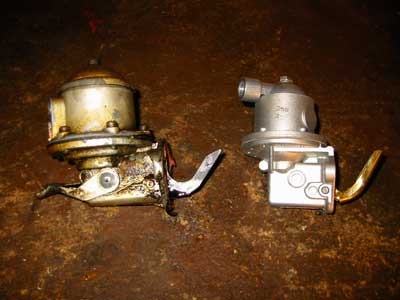

The car was cutting out and loosing power at interstate speeds so a new fuel pump solved that problem.

July 16, 2006

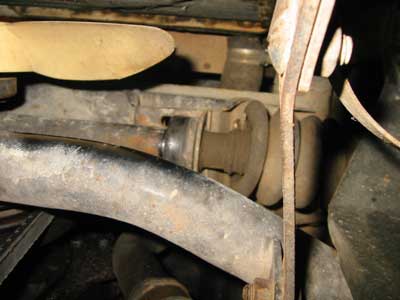

The steering rack on TRs can be allowed to move back and forth when turning the steering wheel to fix that on this car a couple shims were put onto the rack mounts to hold it tight in place.

June 26, 2006

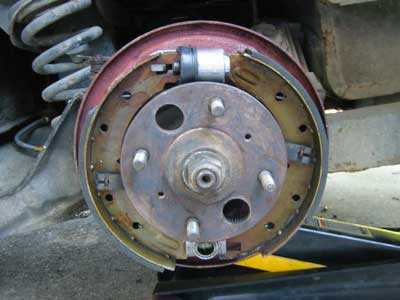

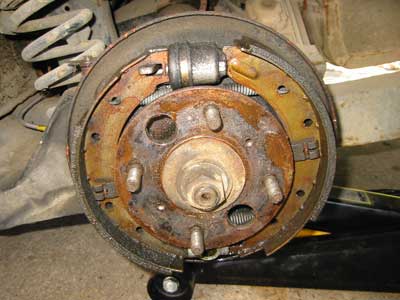

The left rear brake cylinder was leaking and made a mess inside the brake drum. After a new cylinder and a bit of cleaning this brake should be in good working order.

June 21, 2006

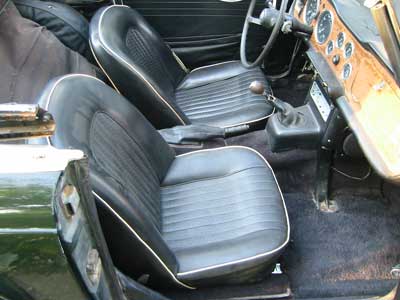

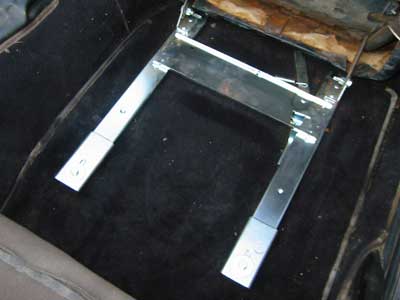

New seat slides and mounting hardware were used to fasten down these original TR250 seats.

June 20, 2006

I cut out a cover for the spare tire. This wood is the type used as underlayment for vinyl flooring and fit very well under the stock clips and flush with the floor on the sides.

February 11, 2006

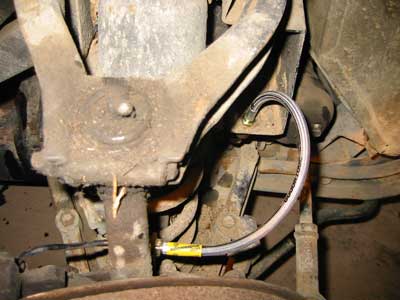

The front rubber brake hoses had collapsed from old age and needed to be replaced. New stainless steel brake hoses have been installed.

February 1, 2006

The carbs have been rebuilt but the front one is spewing fuel from the highlighted hole. This is apparently the float overflow hole. After sitting a bit the new valve loosened up and started working properly.

January 31, 2006

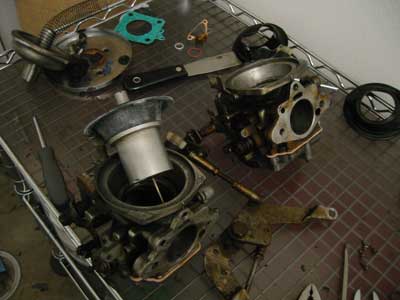

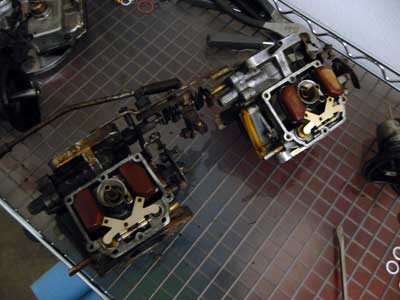

The carbs badly needed to be rebuilt. The orings on the needs adjusters were hard and leaked gas out the bottom. All of the gaskets were old and stuck to the surfaces and the they were just plain dirty.

January 26, 2006

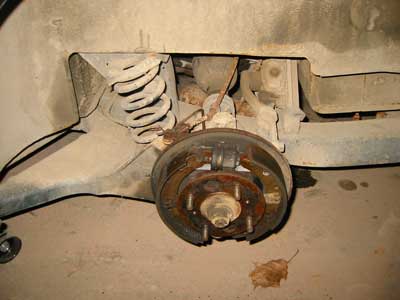

The rear brakes look fine and have now been bled to ensure proper working order. Here can see the IRS from the TR6.

January 12, 2006

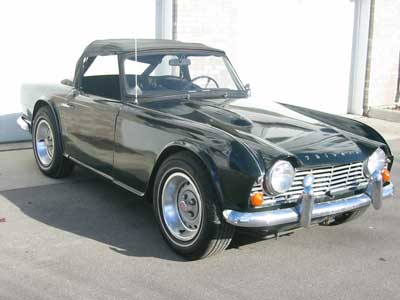

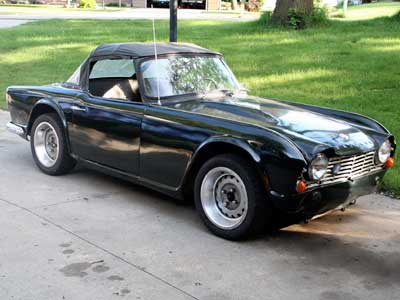

1963 Triumph TR4

This actually a 1971 Triumph TR6 with a TR4 body. The chassis, running gear, dash, windscreen, and wheels are from a TR6.
